Model: MQ-TGF

Photovoltaic
Weather Station

Precision environmental monitoring designed for the future of solar energy. IEC & WMO Compliant.

Get a Quote

IEC Compliant

Meets WMO & IEC standards

Smart Connect

4G, LoRa, & Fiber Optic

IP65 Rated

Built for harsh environments

Product Overview

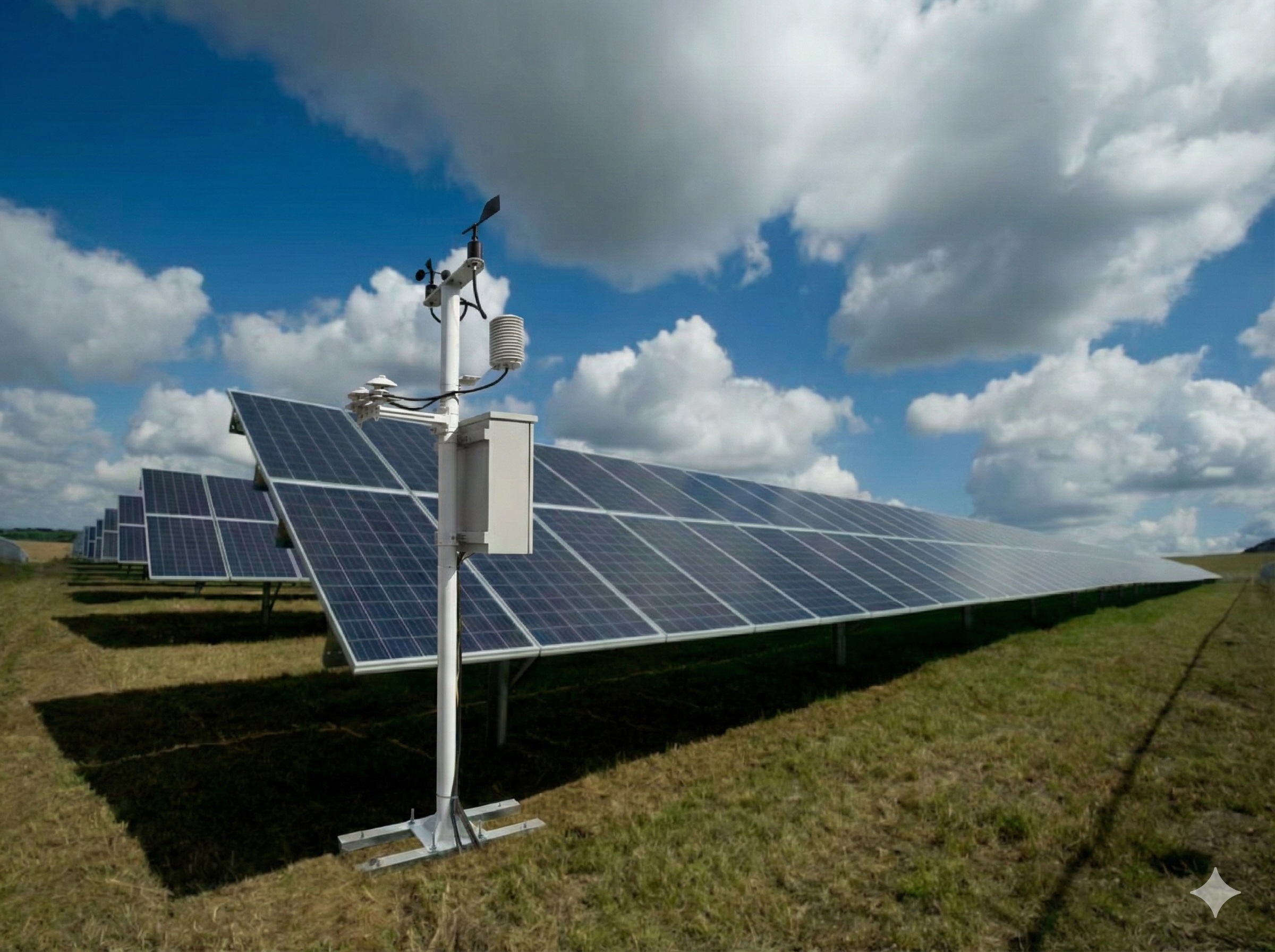

The MQ-TGF Photovoltaic Weather Station is a cutting-edge environmental monitoring system engineered specifically for solar power plants.

Designed and manufactured in strict compliance with WMO meteorological observation standards, it meets major enterprise standards (Q/GDW 617-2011). This system provides comprehensive monitoring of radiation and meteorological conditions, ensuring your solar assets operate at peak efficiency.

Ideal Applications

Grid-Connected Solar Plants

Commercial Power Stations

Distributed Rooftop PV

Research Pilot Projects

System Diagram

Sensor -> Collector -> Monitor

Technical Features

Advanced Integration

Standard communication interfaces for seamless microcomputer connection. Supports real-time data monitoring and independent operation.

Multi-Mode Comms

Equipped with RS232/485/USB and MODBUS protocol. Supports Wired LAN, Fiber Optic, GPRS (4G), or Wireless Radio.

Massive Storage

Industrial CPU stores 1 year of hourly data locally. Can archive 10+ years of data when connected to management software.

Power Security

Built-in rechargeable battery keeps the system fully operational for over 72 hours during AC power failure.

Robust Design

IP65 Rated. Anti-corrosion, Lightning protection. H-type bracket ensures stability in wind speeds up to 75m/s.

Technical Specifications

Monitoring Elements	Range	Accuracy	Resolution
Ambient Temperature	-40°C ~ +50°C	±0.2°C	0.1°C
Humidity	0 ~ 100% RH	±3% RH	1% RH
Atmospheric Pressure	0 ~ 1100 hPa	±0.3 hPa	0.1 hPa
Wind Speed	0 ~ 70 m/s	±0.5 m/s	0.1 m/s
Wind Direction	0 ~ 360°	±3°	1°
Rainfall	0 ~ 999.9 mm	±4%	0.3 mm
Global Radiation	0 ~ 2000 W/m²	±2%	1 W/m²
Module Temperature	-40 ~ +150°C	±0.2°C	0.1°C

Power Supply DC 12-24V / Solar / Mains

Environment -40°C ~ 80°C

Communication RS232 / RS485 / 4G / LORA

Power Consumption < 3W
