Overview

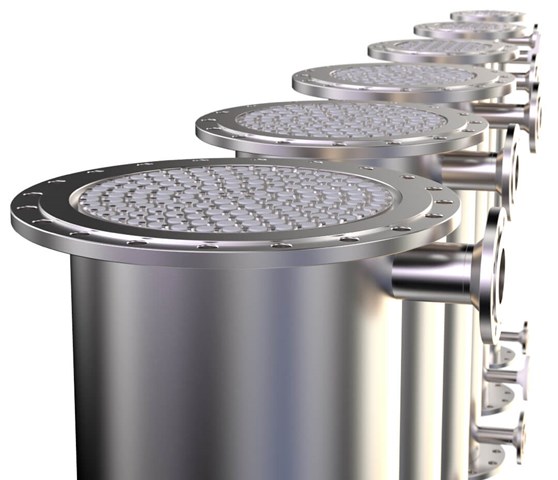

The SS Ceramic Membrane Module is a precision-engineered housing designed to accommodate ceramic membrane elements. It offers high porosity and high capacity per unit membrane surface area.
We provide fully customizable sizing, ranging from single-element lab units to extra-large industrial housings capable of loading over 91 membranes.
- Material: SUS304(L) or SUS316(L)
- Standards: ISO / DIN (Sanitary & Chemical Grades)
- Sealing: EPDM, Fluoro Rubber, Silicon, or PTFE
Technical Specifications
| Membrane Element Loading | 1, 3, 7, 12, 19, 37, 61, 76, 91, 138, 241 pcs |
|---|---|
| Matching Element Dimensions | Length: 500, 1000, 1200mm Diameter: 25, 30, 40mm |
| Pressure Ratings | 0-1.0 Mpa, 0-1.6 Mpa, 0-2.5 Mpa, 0-4.0 Mpa |
| Connection Interface | Flange, Clamp, Whorl coupling |
| Housing Material | Stainless Steel 304(L) or 316(L) |
Application Areas
Food & Beverage
- Wine & Beer filtration
- Fruit & Vegetable Juice
- Dairy Processing
- Flavoring, Seasoning & Sweeteners
- Natural Herb Extracts
Bio-Pharm
- Fermentation Broth
- Antibiotic Purification
- Amino Acid separation
- Enzyme concentration
Chemical Industry
- Natural Rubber (Skim Latex)
- Polysilicon Cutting Fluid Recovery
- Brine Filtration
- Titanium Dioxide Treatment
Water Treatment
- Oilfield Injection Water
- Textile & Printing Wastewater
- Desalination Pre-treatment
- Landfill Leachate
Operational Guidelines
To ensure the longevity of the ceramic elements, please adhere to the following operational constraints:
- Temperature: Avoid vigorous variations (Δ ≤ 5°C/min).
- Pressure: Avoid sharp variations in pressure.
- Pumps: Do not use pumps without a soft starter or frequency converter.
- Chemical Compatibility: Avoid long-term exposure to high-concentration strong acids/alkalis (e.g., Hydrofluoric acid, Sulphuric acid) combined with high temperatures.
Custom Fabrication Available
We can manufacture housings for specific membrane counts (up to 241 pcs) based on your project requirements.
